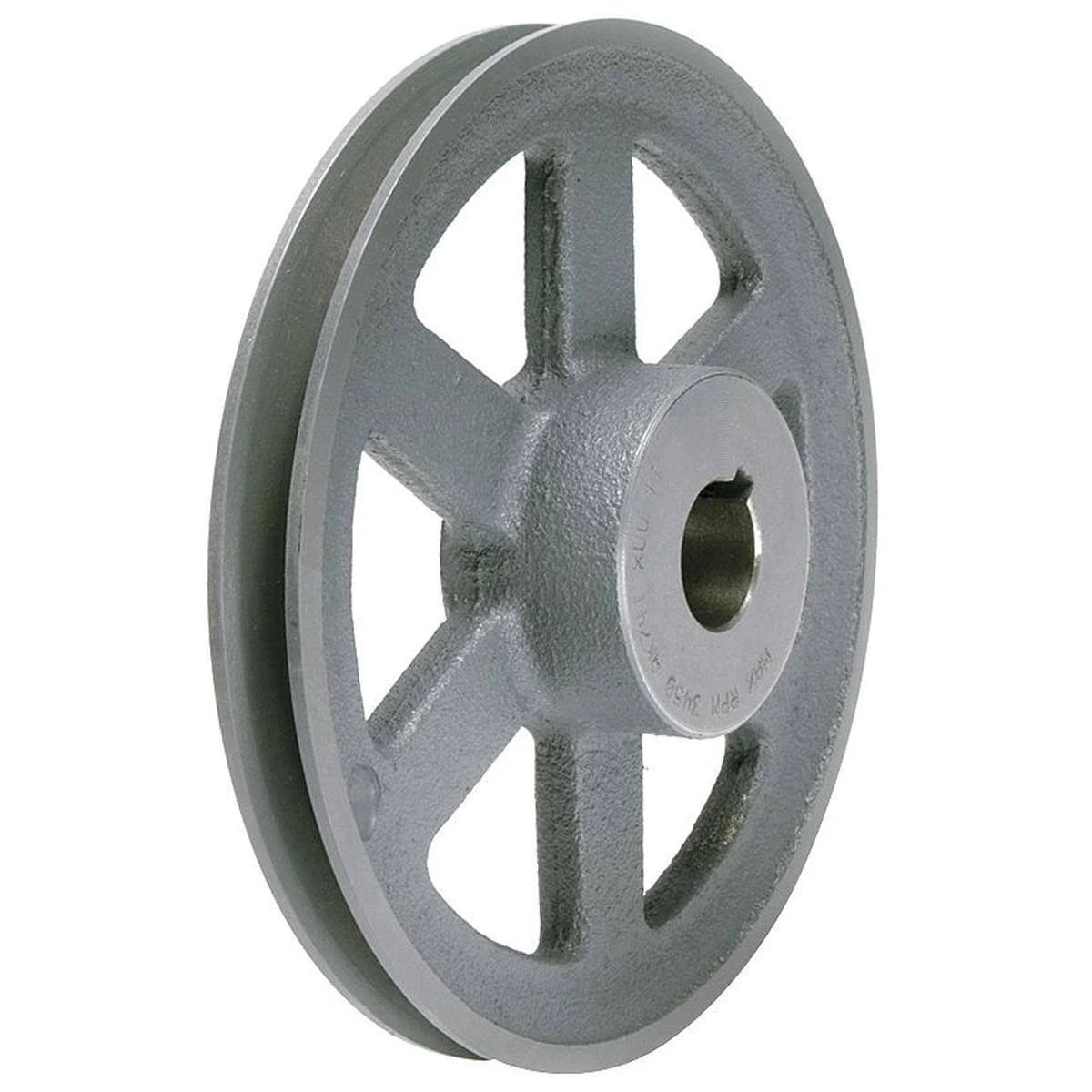

Cast Iron V-Belt Pulley Y788
Sale price
$12.99
Regular price $57.26
Skip to product information
Painted with Powder Coating Finish/Coating; 1 Number of Grooves; 1.46875 in Length Through Bore; 0.1875 in Keyway Width; 0.49 in Groove Depth; Yes Keyway; AK10478 Industry Number; (1) Set Screw Includes; 0.71875 in Hub Projection; 2.5 in Hub OD; A or AX Type V-Belts For Use With; 4L For Use With; 3L For Use With; Lightweight Features; Efficient Features; Light-Duty Features; Fixed Bore Features; Gray Color; 0.875 in Bore Diameter; Finished with Keyway Bore; AX For Belt Section Size; A For Belt Section Size; 4L For Belt Section Size; 3L For Belt Section Size; FHP V-Belt Sheave Also Known As; Yes 3D Model; Yes 2D Drawing; 0.75 in Face Width; Cast Iron Material; Be Safe Install a Guard Around the Drive to Keep anything from Coming into Contact with Moving Parts Warnings & Restrictions; Rotating Equipment can Cause Personal Injury Warnings & Restrictions; ARPM IP-23 Specifications Met; Yes Setscrew; 1 Number of Hubs; 10.25 in (4L, A) Pitch Diameter; 9.51 in (3L) Pitch Diameter; 1.46875 in Overall Width; 10.25 in OD; AX Type V-Belts Compatible with Product Type; A Type V-Belts Compatible with Product Type; 4L Type V-Belts Compatible with Product Type; 3L Type V-Belts Compatible with Product Type; For 3L-Section and A-Section (4L, A and AX) For Belt Section Type; Arm Pulley Construction; 0.09375 in Keyway Depth
Cast Iron V-Belt Pulley Y788
Sale price
$12.99
Regular price $57.26
Shipping calculated at checkout.
