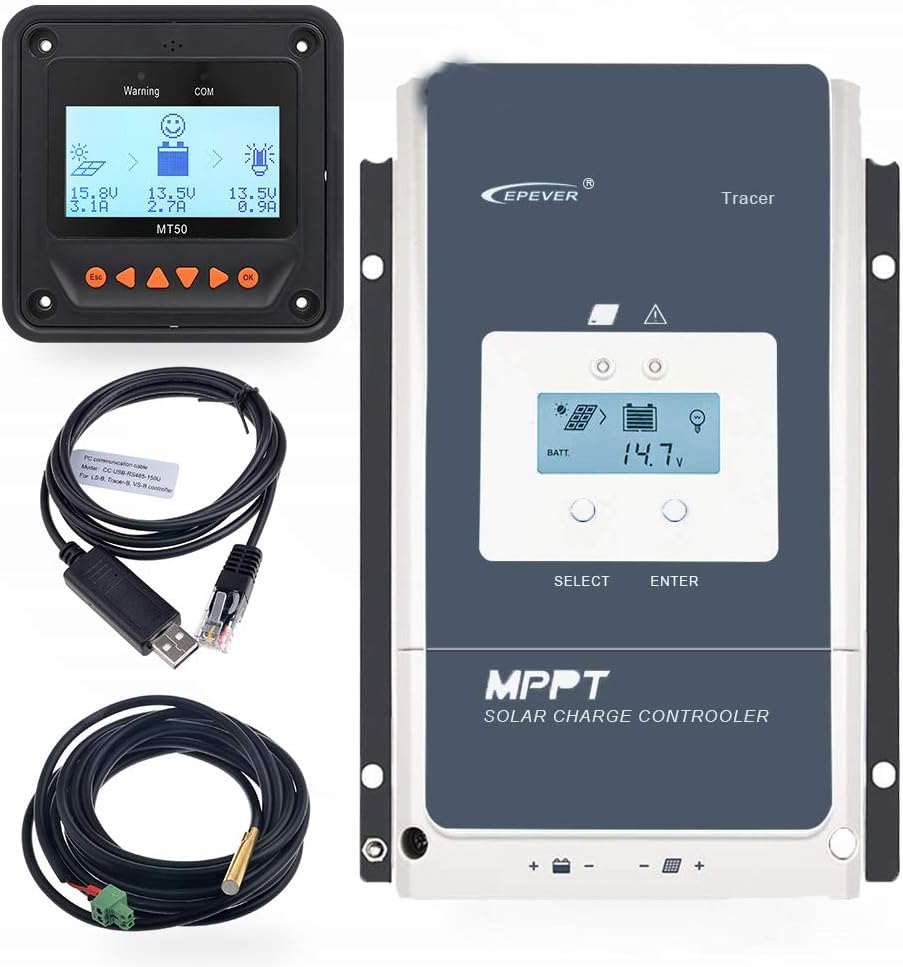

80A MPPT Solar Charge Controller with MT50 Remote Meter & Temperature Sensor K5529
Sale price
$39.90
Regular price $147.94
Skip to product information
✦Tracer-AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability and high industrial standard.
✦Tracer8415AN MPPT charge controller automatically identifying 12/24/36/48VDC system voltage.Rated charging/discharging current 80A. Maximum PV input power 1000W/12V 2000W/24V 3000W/36V 4000W/48V. Maximum PV open circuit voltage 150V. Common negative ground design.
✦The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application.
✦The remote temperature sensor RTS and the voltage sensor design will collect accurate data of battery temperature and voltage.
✦EPEVER Tracer-AN series support PC software, APP and MT-50 to monitor or set the parameters. Compatible with various battery options: Sealed, Gel, Flooded and Lithium.
Patio, Lawn & Garden Generators & Portable Power Solar & Wind Power
80A MPPT Solar Charge Controller with MT50 Remote Meter & Temperature Sensor K5529
Sale price
$39.90
Regular price $147.94
Shipping calculated at checkout.
✦Tracer-AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability and high industrial standard.
✦Tracer8415AN MPPT charge controller automatically identifying 12/24/36/48VDC system voltage.Rated charging/discharging current 80A. Maximum PV input power 1000W/12V 2000W/24V 3000W/36V 4000W/48V. Maximum PV open circuit voltage 150V. Common negative ground design.
✦The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application.
✦The remote temperature sensor RTS and the voltage sensor design will collect accurate data of battery temperature and voltage.
✦EPEVER Tracer-AN series support PC software, APP and MT-50 to monitor or set the parameters. Compatible with various battery options: Sealed, Gel, Flooded and Lithium.
| Tracer5415AN+MT50+RS485+RTS | Tracer6415AN+MT50+RS485+RTS | Tracer8415AN+MT50+RS485+RTS | Tracer10415AN+MT50+RS485+RTS | |
|---|---|---|---|---|
| System nominal voltage | 12/24/36/48VDC Auto | 12/24/36/48VDC Auto | 12/24/36/48VDC Auto | 12/24/36/48VDC Auto |
| Rated charge current | 50A | 60A | 80A | 100A |
| Battery voltage range | 8～64V | 8～64V | 8～64V | 8～64V |
| Max. PV open circuit voltage | 150V,138V(At25℃) | 150V,138V(At25℃) | 150V,138V(At25℃) | 150V,138V(At25℃) |
| MPP voltage range | (Battery voltage +2V)～108V | (Battery voltage +2V)～108V | (Battery voltage +2V)～108V | (Battery voltage +2V)～108V |
| Max. PV input power | 625W/12V, 1250W/24V, 1875W/36V, 2500W/48V | 750W/12V, 1500W/24V, 2250W/36V, 3000W/48V | 1000W/12V, 2000W/24V, 3000W/ 36V, 4000W/48V | 1250W/12V, 2500W/24V, 3750W/36V, 5000W/48V |
| Battery Type | Sealed, Gel Flooded, User and Lithium | Sealed, Gel Flooded, User and Lithium | Sealed, Gel Flooded, User and Lithium | Sealed, Gel Flooded, User and Lithium |
| LCD backlight time | 60S (Default) | 60S (Default) | 60S (Default) | 60S (Default) |
| Recommended cable | 16mm²/6AWG | 16mm²/6AWG | 25mm²/4AWG | 35mm²/2AWG |
